Product details pictures
JX-TP-01
JX-QP-01
Product Introduction
FD-□□-□□□
Product Series: (QP) Side Pickup (TP) Direct Pickup
Product Model: 01

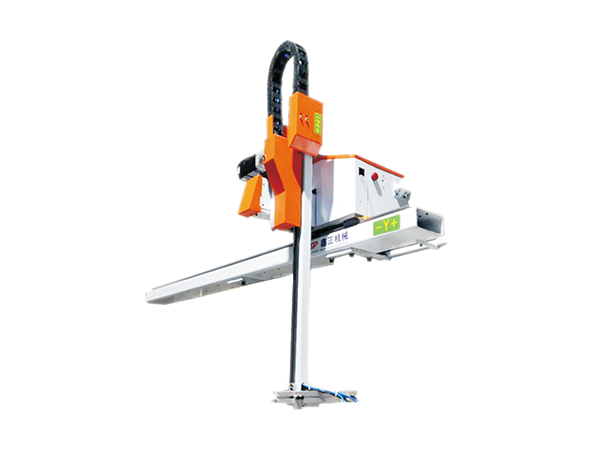

The robot can complete a series of precise actions such as rotation, movement and grasping through the program control system
1. The bottle picking robot of the extrusion blow molding machine adopts Taiwan HB44 two-axis servo control system, Japanese servo motor, and high-rigidity linear slide rail, which has strong stability and high precision, and meets the requirements of working under complex working conditions
Used for daily chemical plastic bottles, seasoning bottles, etc.

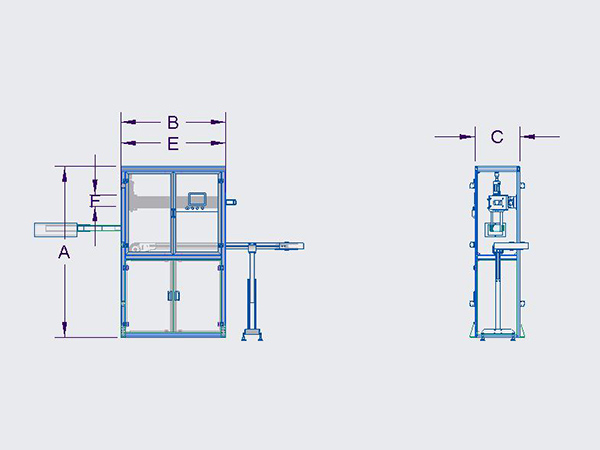

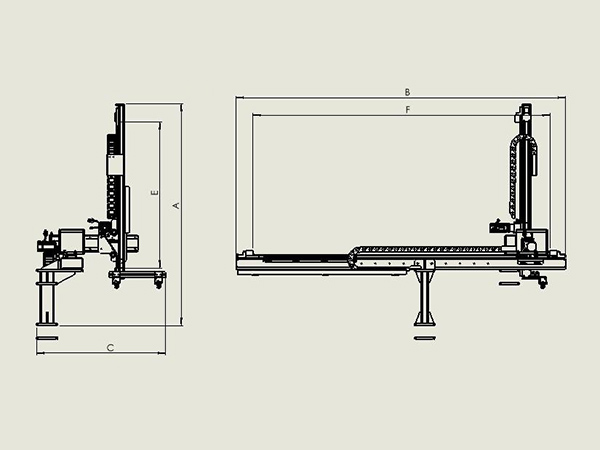

Product size
| Product model | A (height) | B (length) | C (width) | D (bottle size) | E (X-axis travel) | F (Y-axis travel) |
| JX-QP-01 | 2030MM | 1250MM | 550MM | 15L-25L | 1250MM | 200MM |
| JX-TP-01 | 1600MM | 2340MM | 1000MM | / | 980MM | 2110MM |
Product size parameters ★ Customizable Unit: MM
| Product model | Current | Voltage | Power | Gas consumption | Power consumption | Full cycle | Load | Weight |
| Unit | A | V | W | m³/min | KW/H | S/times | kg | kg |
| JX-QP-01 | 2 | AC 220V | 3500 | 1.00 | 3.5 | 10 | 5 | 8 5 |
| JX-TP-01 | 2 | AC 220V | 3500 | 1.00 | 3.5 | 10 | 5 | 140 |
Core accessories brand
| Accessory name | Brand country |
| Inverter | Inovance China/Inovance China/Danfoss (Denmark) |
| Pneumatic components | AirTac Taiwan |
| Low-voltage electronic components | Chint China/Schneider France |
| Touch screen 10 inches | Inovance China/Welon China |
| Proximity switch | Samron China |
| Photoelectric sensor | Leuze/Omron Germany/Japan |
| Switching power supply | Meanwell Taiwan |
| Servo master control | Inovance China |
| Motion controller | Inovance China |
| Bus servo motor | Inovance China |
| PLC | Siemens Germany |
