Product details pictures

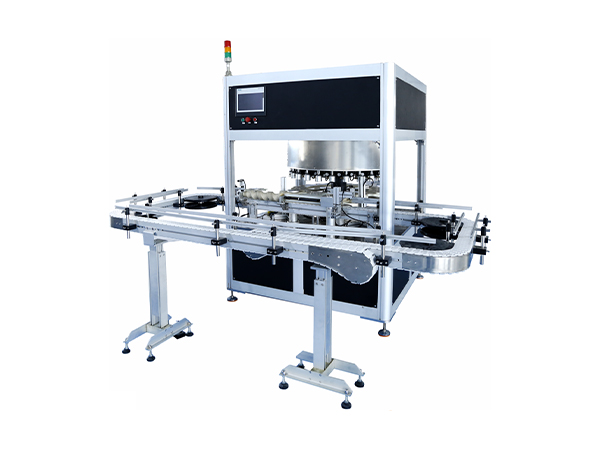

CL-XZ-NW-24
Product Introduction
CL-XZ-NW-□□
Product Series: SD/ZX/XZ/GJ
Product Function: NW (Non-weighing)
Product Model: 24
It can realize the air tightness test of the containers to be tested of the specified specifications. After the leak test is completed, the qualified products and unqualified products will be separated. The corresponding station of the unqualified bottle will alarm during the test process, and it will be removed and separated from the qualified bottles.
1. Sensitivity: It can detect tiny gas or liquid leaks in the bottle, with high sensitivity
2. Easy to use: Simple operation, no complex settings or technical knowledge required, suitable for various environments and personnel
3. Real-time detection: It can detect and automatically remove leaking products in real time
Plastic bottles, iron barrels/iron bottles, etc.

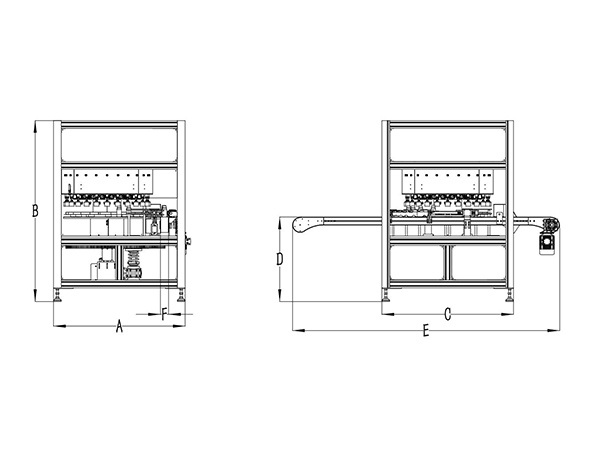

Product size parameters ★ Customizable Unit: MM
| Product model | A | B | C | D | E | F |
| Unit | mm | mm | mm | mm | mm | mm |
| CL-XZ-NW-24 | 1400 | 1900 | 1400 | 900 | 2600 | 85/105 |
Product function parameters: ◉Yes -No
| Product model | Number of workstations | Weighing range | Accuracy (aperture) | Accuracy (weight) | Detection speed | ||||
| Unit | Piece | g | mm | mg | 0.25L | 0.5L | 1L | 5L | 10L |
| CL-XZ-NW-24 | 1 | - | 0.01 | - | 16000 | 14000 | 12000 | - | - |
Product selection and technical parameters table
| Product model | Current | Voltage | Air pressure | Power | Gas consumption (1L bottle) | Power consumption | Inflating time | Leak detection time | Static pressure holding | Weight |
| Unit | A | V | Mpa/c | W | m³/min | KW/H | S | S | S | kg |
| CL-XZ-NW-24 | 6 | AC 220 | 0.7MP | 2000 | 2.2 | 2 | 0.3-0.5 | 0.3-1 | 0.3-0.6 | 860 |
Core accessories brand
| Accessory name | Brand country |
| PLC host | Siemens Germany |
| PLC expansion module | Siemens Germany |
| PLC analog module | Siemens Germany |
| Signal amplifier board | Xinzheng China |
| Precision leak detection solenoid valve | SMC Japan/FESTO (Germany) |
| Precision gas-filled battery valve | SMC Japan/FESTO (Germany) |
| Action solenoid valve | Yadek/Taiwan |
| Switching power supply | Mingwei Taiwan |
| Air source resistance | SMC Japan |
| Photoelectric sensor | Omron Japan/Leuze |
| Oil mist filter | SMC Japan |
| Test cylinder | SMC Japan |
| Actuating cylinder | SMC Japan |
| Detection board | Xinzheng China |
| 7-inch touch screen | Vein Taiwan |
| Precision pressure regulating valve | SMC Japan |
| Inverter | Inovance China/Danfoss (Denmark) |
| Motor | WVT China |
| Servo Motor | Inovance China |
| Module | Xinzheng China |
