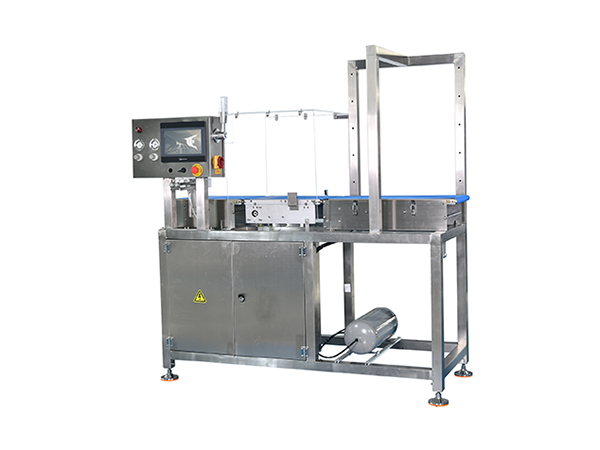

Product details pictures
CZ-JZ-0.1G/0.3G
Product Introduction
CZ-JZ-□□□
Product Series: (JZ) Weight Type
Product Model: Accuracy 0.1g/Accuracy 0.3g
1. Dynamically detect whether the product meets the quality control requirements;
1. Checking the weight is actually a judgment process, which is to detect whether the item meets the required weight. When the weighed product does not meet the set weight requirements, the equipment will proceed to the next step, and will not convey the unqualified product to the next work link. This is another major advantage of the dynamic weighing machine
2. Alarm or rejection. When the device detects that the item does not meet the required weight, the device can automatically remove the product from the production line, which requires the use of its supporting equipment, the rejector. If the customer does not want to use the rejector, then the weighing machine can be selected to automatically alarm and shut down.
3. The weighing data can be memorized. The weighing machine can memorize the weighing data of each batch, and can be exported if necessary. If signal transmission and interaction are required, dynamic weighing machines can achieve this. Therefore, the device can be used alone or in conjunction with an automated assembly line to achieve unmanned operation.
Product size
Product model number | A | B | C | E |
CZ-JZ-0.1G | 1300 | 800-1400 | 1500-2100 | 450 |
CZ-JZ-0.3 G | 1500 | 800-1400 | 1500-2100 | 630 |
Product selection and technical parameters table
Product model | Current | Voltage | Power | Drive motor | Power consumption | Detection size | Inspection accuracy | Weighing range | Detection speed | Air source | Weight |
Unit | A | V | W | W | KW/H | mm | g | g | pcs | Mpa | kg |
CZ-JZ-0.1G | 1.6 | AC 220 | 75 0 | 700 | 0.75 | Length≦200 width≦200 height≦400 | ±0.3-2 | 1-3000 | 4000-4500 | 0.5-0.8 | 160 |
CZ-JZ-0.3G | 1.6 | AC 220 | 750 | 700 | 0.75 | Length ≦ 200 width ≦200 high ≦400 | ±0.3-2 | 1-3000 | 4000-4500 | 0.5-0.8 | 160 |
Core accessories brand
Accessory name | Brand / Country |
PLC host | Siemens Germany |
PLC expansion module | Siemens Germany |
PLC analog module | Siemens Germany |
Signal amplifier board | Xinzheng China |
Precision leak detection solenoid valve | SMC Japan / FESTO Germany |
Precision gas-filled battery valve | SMC Japan / FESTO Germany |
Action solenoid valve | Yadek Taiwan |
Switching power supply | Mingwei Taiwan |
Air source resistance | SMC Japan |
Photoelectric sensor | Omron Japan / Leuze Unspecified |
Oil mist filter | SMC Japan |
Test cylinder | SMC Japan |
Actuating cylinder | SMC Japan |
Detection board | Xinzheng China |
7-inch touch screen | Vein Taiwan |
Precision pressure regulating valve | SMC Japan |
Inverter | Inovance China / Danfoss Denmark |
Motor | WVT China |
Servo motor | Huichuang China |
Module | Xinzheng China |
