Weighing and leak detection machine

Product details pictures

  • CZ-JZ-0.1G/0.3G

Product Introduction

  • Weighing Machine

    CZ-JZ-□□□

    Product Series: (JZ) Weight Type

    Product Model: Accuracy 0.1g/Accuracy 0.3g

  • Core Function of the Product

    1. Dynamically detect whether the product meets the quality control requirements;

  • Main Features of the Product

    1. Checking the weight is actually a judgment process, which is to detect whether the item meets the required weight. When the weighed product does not meet the set weight requirements, the equipment will proceed to the next step, and will not convey the unqualified product to the next work link. This is another major advantage of the dynamic weighing machine

    2. Alarm or rejection. When the device detects that the item does not meet the required weight, the device can automatically remove the product from the production line, which requires the use of its supporting equipment, the rejector. If the customer does not want to use the rejector, then the weighing machine can be selected to automatically alarm and shut down.

    3. The weighing data can be memorized. The weighing machine can memorize the weighing data of each batch, and can be exported if necessary. If signal transmission and interaction are required, dynamic weighing machines can achieve this. Therefore, the device can be used alone or in conjunction with an automated assembly line to achieve unmanned operation.

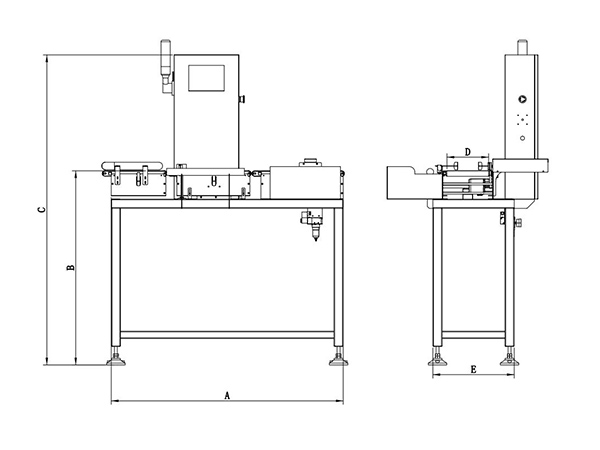

  • Product size

    Product Model A B C E
    CZ-JZ-0.1G 1300 800-1400 1500-2100 450
    CZ-JZ-0.3G 1500 800-1400 1500-2100 630

    Product selection and technical parameter table

    Product model Current Voltage Power Drive motor Power consumption Detection size Inspection accuracy Weighing range Detection speed Air source Weight
    Unit A V W W KW/H mm g g pcs Mpa kg
    CZ-JZ-0.1G 1.6 AC 220 750 700 0.75 Length≦200 Width ≦200 Height ≦400 ±0.3-2 1-3000 4000-4500 0.5-0.8 160
    CZ-JZ-0.3G 1.6 AC 220 750 700 0.75 Length≦200 Width≦200 Height≦400 ±0.3-2 1-3000 4000-4500 0.5-0.8 160

    Core accessories brand

    Accessory name Brand / Country
    PLC host Siemens Germany
    PLC expansion module Siemens Germany
    PLC analog module Siemens Germany
    Signal amplifier board Xinzheng China
    Precision leak detection solenoid valve SMC Japan / FESTO Germany
    Precision inflatable battery valve SMC Japan / FESTO Germany
    Action solenoid valve Yardec Taiwan
    Switching power supply Mingwei Taiwan
    Air source resistance SMC Japan
    Photoelectric sensor Omron Japan / Leuze Unspecified
    Oil mist filter SMC Japan
    Test cylinder SMC Japan
    Actuating cylinder SMC Japan
    Detection board Xinzheng China
    7-inch touch screen Vinyl Taiwan
    Precision pressure regulating valve SMC Japan
    Inverter Inovance China / Danfoss Denmark
    Motor WVT China
    Servo motor Inovance China
    Module Xinzheng China
