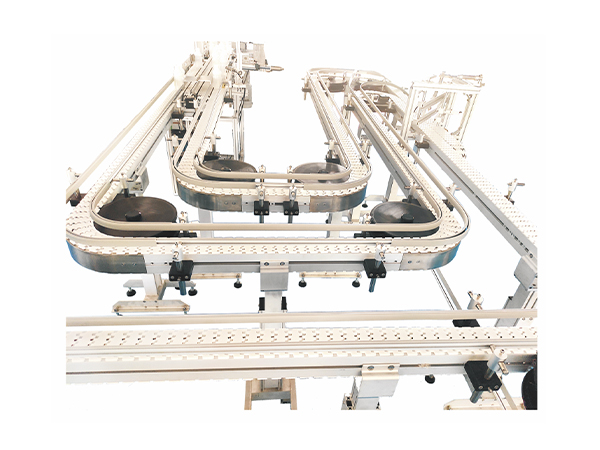

Product details pictures
SS-RX-065/85/105/175
Product Introduction
SS-RX-□□-□□□
Product Series: 65/85/105/175
Product Model: 900/1200/1500
Product Function: It can easily realize the functions of logistics turning, tilting, lifting, caching, transferring, distributing, flipping, diversion, merging, etc.
1. The chain plate is made of imported POM material;
2. The flexible conveyor line, drive wheel bend, and mesh belt closure are made of stainless steel, which is durable
3. Individual and centralized electric box control, adjustable speed
4. Low noise, high wear resistance, long service life;
5. Sprocket drive, flexible turning, smooth transmission;
6. Modular structure, easy disassembly and assembly, reducing maintenance costs;
Plastic bottles, paper cans, canned transportation, boxes, etc.
Product size parameters ★ Customizable Unit: MM
Product model | A | B | C | ||
Unit | MM | MM | MM | MM | MM |
SS-RX-065-0900 | 500*n | ★ | 65 | 900±150 | ★ |
SS-RX-065-1200 | 500*n | ★ | 65 | 1200±150 | ★ |
SS-RX-065-1500 | 500*n | ★ | 65 | 1500±150 | ★ |
SS-RX-085-0900 | 500*n | ★ | 85 | 900±150 | ★ |
SS-RX-085-1200 | 500*n | ★ | 85 | 1200±150 | ★ |
SS-RX-085-1500 | 500*n | ★ | 85 | 1500±150 | ★ |
SS-RX-105-0900 | 500*n | ★ | 105 | 900±150 | ★ |
SS-RX -105-1200 | 500*n | ★ | 105 | 1200±150 | ★ |
SS-RX-105-1500 | 500*n | ★ | 105 | 1500±150 | ★ |
SS-RX-175-0900 | 500*n | ★ | 175 | 9 00±150 | ★ |
SS-RX-175-1200 | 500*n | ★ | 175 | 1200±150 | ★ |
SS-RX-175-1500 | 500*n | ★ | 175 | 1500±150 | ★ |
Product selection and technical parameter table
Product model | Current | Voltage | Drive motor | Power consumption | Line speed |
Unit | A | V | W | KW/H | Meters/minute |
SS-RX-065-0900 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-065-1200 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-065-1500 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-085-0900 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-085-1200 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-085-1500 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-105-0900 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-105-1200 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-105-1500 | 1.5 | AC 220 | 370 | 0.37 | 16.48 |
SS-RX-175-0900 | 2 | AC 220 | 550 | 0.37 | 21.98 |
SS-RX-175-1200 | 2 | AC 220 | 550 | 0.37 | 21.98 |
SS-RX-175-1500 | 2 | AC 220 | 550 | 0.37 | 21.98 |
Core accessories brand
Accessory name | Brand country |
RV motor and reducer | WVT/Quanshi Italy |
Inverter | Inovance China/Danfoss (Denmark) |
Pneumatic components | AirTac/Xingchen Taiwan/China |
Electronic components | Chint China |
Switching power supply | Meanwell Taiwan |
PLC | Inovance China/Siemens Japan |
Optoelectronics | Leuze/Autonics Germany/Korea |
