180° flexible conveyor line

Product details pictures

SS-RX-065/85/105/175

Product Introduction

Flexible Conveyor Line Series

SS-RX-□□-□□□

Product Series: 65/85/105/175

Product Model: 900/1200/1500

Core Function

Product Function: It can easily realize the functions of logistics turning, tilting, lifting, caching, transferring, distributing, flipping, diversion, merging, etc.

Main Features of the Product

1. The chain plate is made of imported POM material;

2. The flexible conveyor line, drive wheel bend, and mesh belt closure are made of stainless steel, which is durable

3. Individual and centralized electric box control, adjustable speed

4. Low noise, high wear resistance, long service life;

5. Sprocket drive, flexible turning, smooth transmission;

6. Modular structure, easy disassembly and assembly, reducing maintenance costs;

Fourth, application scenarios

Plastic bottles, paper cans, canned transportation, boxes, etc.

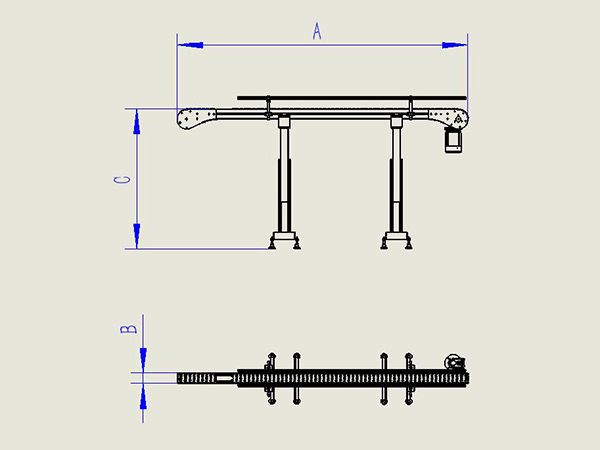

Product size parameters ★ Customizable Unit: MM

Product model	A		B	C
Unit	MM	MM	MM	MM	MM
SS-RX-065-0900	500*n	★	65	900±150	★
SS-RX-065-1200	500*n	★	65	1200±150	★
SS-RX-065-1500	500*n	★	65	1500±150	★
SS-RX-085-0900	500*n	★	85	900±150	★
SS-RX-085-1200	500*n	★	85	1200±150	★
SS-RX-085-1500	500*n	★	85	1500±150	★
SS-RX-105-0900	500*n	★	105	900±150	★
SS-RX -105-1200	500*n	★	105	1200±150	★
SS-RX-105-1500	500*n	★	105	1500±150	★
SS-RX-175-0900	500*n	★	175	9 00±150	★
SS-RX-175-1200	500*n	★	175	1200±150	★
SS-RX-175-1500	500*n	★	175	1500±150	★

Product selection and technical parameters table

Product model	Current	Voltage	Drive motor	Power consumption	Line speed
Unit	A	V	W	KW/H	Meters/minute
SS-RX-065-0900	1.5	AC 220	370	0.37	16.48
SS-RX-065-1200	1.5	AC 220	370	0.37	1 6.48
SS-RX-065-1500	1.5	AC 220	370	0.37	16.48
SS-RX-085-0900	1.5	AC 220	370	0.37	16.48
SS-RX-085-1200	1.5	AC 220	370	0.37	16.48
SS-RX-085-1500	1.5	AC 220	370	0.37	16.48
SS-RX-105-0900	1.5	AC 220	370	0.37	16.48
SS-RX-105-1200	1.5	AC 220	370	0.37	16.48
SS-RX-105-1500	1.5	AC 220	370	0.37	16.48
SS-RX-175-0900	2	AC 2 20	550	0.37	21.98
SS-RX-175-1200	2	AC 220	550	0.37	21.98
SS-RX-175-1500	2	AC 220	550	0.37	21.98

Core accessories brand

Accessory name	Brand country
RV motor and reducer	WVT/Quanshi Italy
Inverter	Inovance China/Danfoss (Denmark)
Pneumatic components	AirTac/Xingchen Taiwan/China
Electronic components	Chint China
Switching power supply	Mean Well Taiwan
PLC	Inovance China/Siemens Japan
Optoelectronics	Leuze/Autonics Germany/Korea
