Automatic film wrapping machine

Product details pictures

  • CM-QZD-1800

Product Introduction

  • Film Wrapping Machine

    CM-QZD-□□□□

    Product Series: QZD Fully Automatic, BZD Semi-Automatic

    Product Model: 1600/1800

  • Core Function of the Product

    Film wrapping for palletizing products

  • Main Features of the Product

    1. Beautiful design, simple and sturdy mechanical structure, small footprint, low maintenance and long service life:

    2. Advanced main machine swings out film, so that the product is rolled tighter and more evenly and flatter.

    3. Adapt to various types of pallets and bottles, easy to adjust, high production efficiency;

  • Application scenarios

    The wrapping film packaging machine is suitable for container transportation of bulk goods and packaging of loose pallets. It is widely used in blow molding products, glass products, tin can products, etc.;

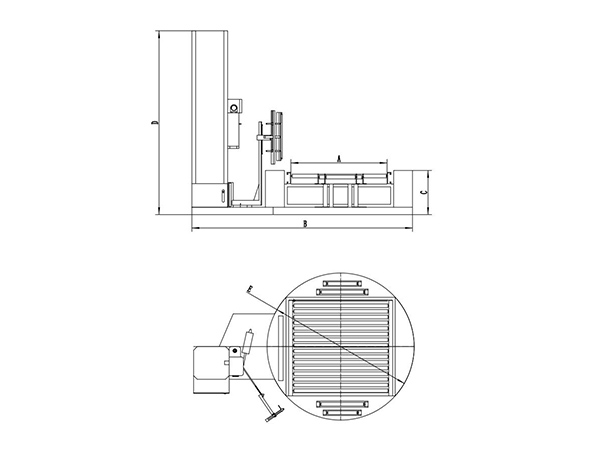

  • Product size

    Product model A B C D E
    Unit mm mm mm mm mm
    CM-QZD-1800 1200 3300 450 2000/2400/2700/3000/3200/3400 1800
    CM-BZD-1600 1100 3200 450 2000/2400/2700/3000/3200/3400 1600

    Product selection and technical parameters table

    Product model Current Voltage Power Drive motor Power consumption Turntable speed Load bearing Packing material width Outer diameter Heavy weight
    Unit A V W W KW/H rpm kg mm mm kg
    CM-QZD-1800 6 AV220 4000 350 0 3 0-10 2000 50-500 Φ50-Φ280 420
    CM-BZD-1600 8 AV220 3000 2600 2.5 0-10 2000 50-500 Φ50-Φ 280 360
