Automatic bagging and baling machine

Product details pictures

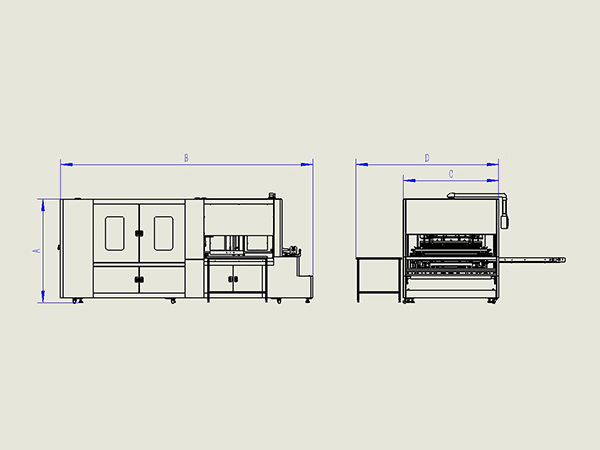

BZ-QZD-F-1800

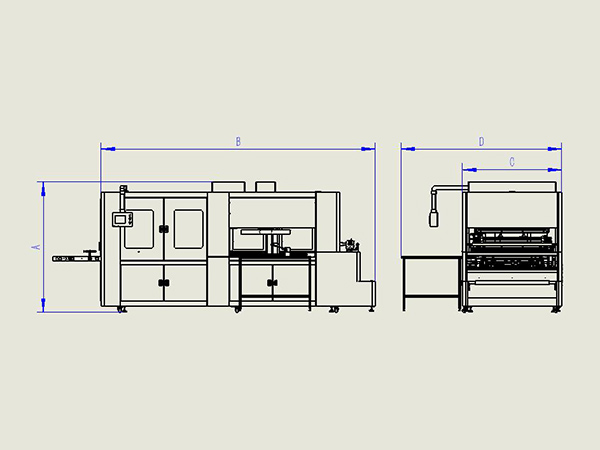

BZ-QZD-Y-1000/1200/1400/1600

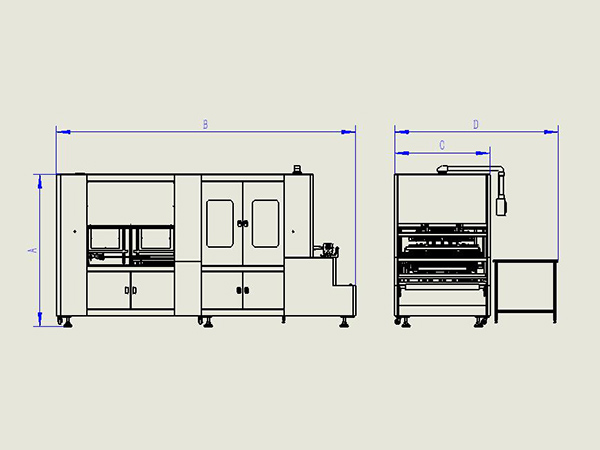

BZ-QZD-Y-1800-2

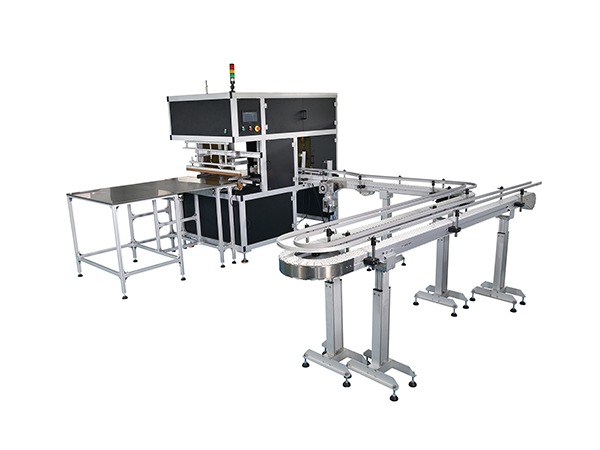

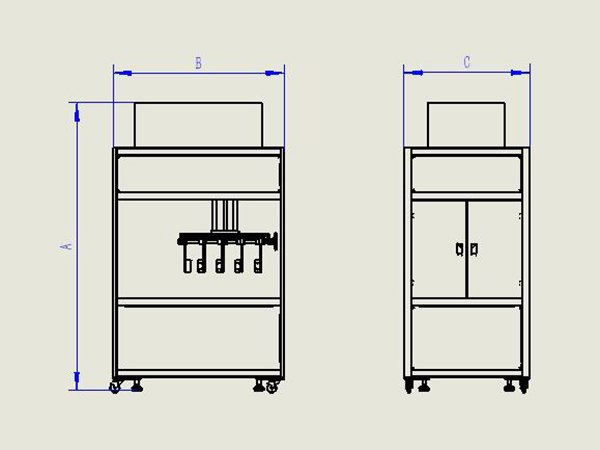

PP-SF-4

Product Introduction

Packaging machine

BZ-QZD-□□-□□□□ BZ-BZD-□□-□□□□

Product series: Y round bottle, F square bottle

Product model: 1000/1200/1400/1600/1740/1800

Core function

Product function: This machine is mainly used for packaging plastic bottles such as HDPE, PET, and PP. The equipment replaces the traditional manual packaging operation and realizes the automation of the production line, which greatly saves labor costs and improves efficiency and benefits;

Main features of the product

1. 9-15 axis bus servo motor control, continuous and stable operation;

2. Constant temperature sealing is adopted, and the sealing effect is one line, which can meet the needs of medical packaging;

3. Multi-servo multi-link design, multiple bottle types can be adjusted with one button, meet the needs of 20-minute rapid adjustment, and improve debugging efficiency;

4. It can be matched with a high-speed servo bottle arrangement machine to increase production capacity, and the fastest can reach one pack in 30 seconds. There are many cases of speeds of more than 12,000 per hour for bottles below 1 liter

5. The servo adopts Ethercat control, which has higher precision, faster response, stronger stability, and simpler lines; multi-channel automatic bottle feeding realizes high-speed bottle packaging, and can accurately locate and connect with production lines such as bottle blowing machines, leak detection machines, and labeling machines. The most advanced Internet of Things technology is used to monitor the status of the equipment in real time, and understand the operation of the equipment more quickly and accurately.

6. Fast bag change, can be completed within 1 minute;

7. Multiple recipe storage, one-click switching;

8. Fast bottle change, greatly improving production efficiency

9. The monthly production capacity can reach 30 units, standardized batch production, fast after-sales response, spare parts are available in real time, no need to wait for processing, with the company's ERP and office automation software, the same-day application can be sent on the same day

10. There are rich cases such as edible oil bottles, milk bottles, wide-mouth bottles, daily chemical washing bottles, soy sauce bottles, medicine bottles, chemical barrels, etc.

Application scenarios

Plastic bottles, paper barrels, etc.

Product size

Product model	A	B	C	D	E (packing width)	F (packing length)	G (bottle size)
Unit	MM	MM	MM	MM	MM	MM	MM
BZ-QZD-F-1800	2400	4350	1800	3000	500-900	1200	High: 60-450
BZ-QZD-Y-1000	1800	2900	1020	2100	350-500	700	High: 50-150
BZ-QZD -Y-1200	1900	3400	1220	2300	350-600	700	Height: 50-150
BZ-QZD-Y-1400	2300	4500	1420	2500	480-650	1200	Height: 60-280
BZ-QZD-Y-1600	2300	4500	1720	2700	550 -900	1200	Height: 60-350
BZ-QZD-Y-1800-2	2200	5320	2010	3000	510-900	1200	Height: 60-280
PP-SF-4	2300	1000	1350	-	-	-	-

Product selection and technical parameter table (◉Yes —No)

Product model	Current	Voltage	Power	Gas consumption (1L bottle)	Power consumption	Production/hour	Full cycle time	Secondary bagging	Vacuuming	Nitrogen or ozone filling function	Bottle discharge function	Weight
Unit	A	V	W	m³/min	KW/H	Package	S	-	◉	◉	◉	kg
BZ-QZD-F-1800	38.6	AC 220V	8500	9.4	5.9	120	25	-	◉	◉	◉	1700
BZ-QZD-Y-1000	30	AC 220V	6800	7.4	4.4	120	25	-	◉	◉	◉	950
BZ-QZD-Y-1200	32	AC 220V	7200	7.4	4.8	120	25	-	◉	◉	◉	1120
BZ- QZD-Y-1400	33	AC 220V	7350	7.4	5.1	120	25	-	◉	◉	◉	1320
BZ-QZD-Y-1600	33	AC 220V	7350	9.4	5.1	120	25	-	◉	◉	◉	1520
BZ-QZD-Y-1800-2	43	AC 220V	9500	9.4	6.6	40	25	◉	◉	◉	◉	1850
PP-SF-4	/	/	/	8.4	/	8000

Selection Table

Product name	Specifications and models	Bottle height range	Volume size	Width range	Length range mm	Bottle speed per hour	Packing speed per hour	Functional features	Remarks:	Bottle arrangement function
Fully automatic small round bottle baler	BZ-QZD-Y-1200	50-150mm	30ml-1000ml	400-600mm	Within 1000mm	100-2500 per hour	1-40 packs	11 bus servo motors, small footprint, constant temperature sealing, universal for multiple bottle types, 20 minutes quick adjustment	Thin and tall bottles need to be re-evaluated	-
Fully automatic round bottle baler	BZ-QZD-Y-1400	60-300mm	100ml-3000ml	500-700mm	Within 1200mm	100-3500 per hour	1-40 packs	13 bus servo motors, constant temperature sealing, universal 20-minute quick adjustment for multiple bottle types	Thin and tall bottles need to be re-evaluated	-
Fully automatic round bottle packing machine	BZ-QZD-Y-1600	60-300mm	300ml-10 liters	600-900mm	Within 1200mm	100-3500 per hour	1-40 packs	13 bus servo motors, constant temperature sealing, universal for multiple bottle types, 20 minutes quick adjustment	Thin and tall bottles need to be re-evaluated	-
Fully automatic secondary bagging round bottle baler	BZ-QZD-Y-1800-2	60-300mm	100ml-10 liters	600-900mm	Within 1200mm	100-2500 per hour	1-25 packages	15 bus servo motors, constant temperature sealing, 2 layers of bags, universal for multiple bottle types, 20 minutes quick adjustment	Thin and tall bottles need to be re-evaluated	-
Fully automatic square bottle baler	BZ-QZD-F-1800	150-500mm	1 liter-30 liters	600-900mm	Within 1200mm	100-3500 per hour	1-50 packages	15 bus servo motors, constant temperature sealing, can be used for large bottles, bottles below 30 liters, and multiple bottle types can be quickly adjusted in 20 minutes	Thin and tall bottles need to be re-evaluated	-
Servo four-channel bottle dispensing machine	PP-SF-4	60-300mm	100ml-5000ml	Bottle diameter within 200	Within 900mm	3000-10000 per hour	30-80 packages	Dual servo high-speed bottle dispensing, fast speed, convenient and quick adjustment	Specifically depends on the number of bottles arranged per package	-
Cylinder four-channel bottle dispensing machine	PP-QG-4	60-300mm	100ml-5000ml	Bottle diameter within 200	Within 900mm	3000-6000 per hour	30-80 packs	High-level bottle arrangement, convenient and quick adjustment	Specifically depends on the number of bottles arranged per pack	-

Core accessories brand

Accessory name	Brand country
RV motor and reducer	WVT China/Quanshi Italy
Inverter	Inovance China/Danfoss (Denmark)
Pneumatic components	AirTac Taiwan
Low voltage electronic components	Chint China/Schneider France
Touch screen 10 inches	Inovance China
Proximity switch	Samron China
Photoelectric sensor	Leuze/Omron Germany/Japan
Switching power supply	Meanwell Taiwan
Servo master control	Inovance China
Motion controller	Inovance China
Bus servo motor	Inovance China
PLC	Inovance/Siemens Germany
